| Chứng nhận: | CE,RoHS |
|---|---|
| Số lượng đặt hàng tối thiểu: | 1 |
| Giá bán: | 50 |
| Mẫu số: | BH93420-III | Tín hiệu đầu ra: | Loại tương tự |
|---|---|---|---|
| Loại thăm dò: | Loại thăm dò | Xếp hạng IP: | IP68 |
| Trọng lượng ròng: | 0,3kg | Vật liệu cơ hoành: | Thép không gỉ 316L |
| Sự chính xác: | 00,25%, 0,5% | Vật liệu cáp: | PE,PU,PTFE |
| Phạm vi đo lường: | 0 ~ 10m 400m | Loại áp lực: | Áp suất đo, áp suất tuyệt đối, áp suất kín |
| Quá tải: | Phạm vi định mức 2x | Nhiệt độ hoạt động: | -20~80oC |
| Nhiệt độ lưu trữ: | -30 ~ 100ºC | Vật liệu nhà ở: | Nhôm đúc, 1Cr18ni9ti |
| Xếp hạng chống cháy nổ: | ExiaIICT6 | ||
| Làm nổi bật: | IP68 water level transmitter,high accuracy water level sensor,0.25% accuracy level transmitter |
||

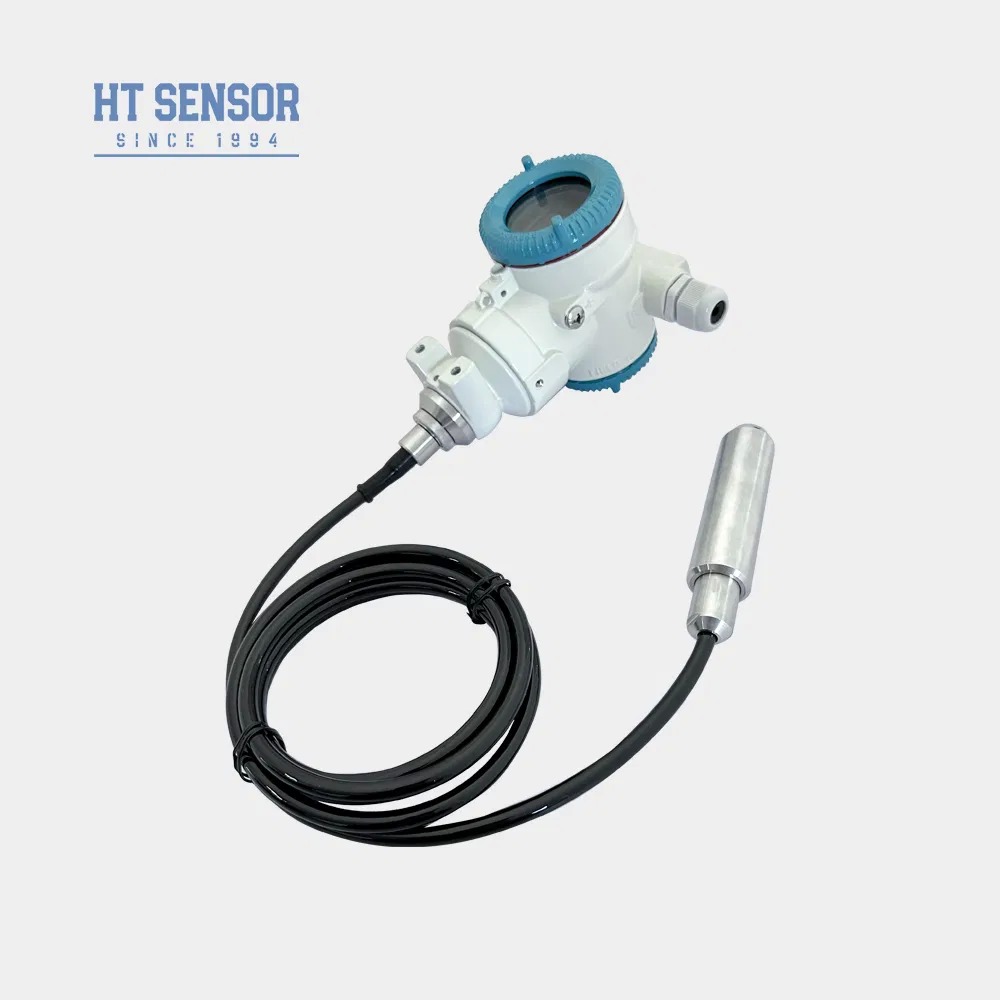

The BH93420-III water level transmitter features a highly precise Piezoresistive diffused silicon pressure sensor for signal measurement. It measures static pressure (directly related to water level) and converts it into a standard output signal through amplification circuitry, establishing a linear relationship for precise water level measurement.
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 15~30VDC | 2/3/4 wire |
| RS485 Communication Protocol | 4 wire |
A: High precision, durability, and excellent performance. Customization available.
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
A: Our facilities can produce up to 30,000 units monthly. Contact our sales team for large orders.
A: 5-8 working days for standard models. Customized products may vary.
A: Competitive pricing with bulk order and long-term partnership discounts available.
A: 24-month warranty with 24-hour response time for support queries. Remote assistance available.
