G1 Flush Diaphragm Pressure Transducer Silicon Diaphragm Pressure Sensor

Thông tin cơ bản
Nguồn gốc: Baoji, Trung Quốc
Hàng hiệu: HT sensor
Chứng nhận: CE,RoHs,ISO9001
Số mô hình: BPHT241
Số lượng đặt hàng tối thiểu: 1
Giá bán: negotiable
chi tiết đóng gói: Gói xuất tiêu chuẩn
Thời gian giao hàng: 40 ngày làm việc
Điều khoản thanh toán: Liên minh phương Tây, L/C, T/T
Khả năng cung cấp: 5000pcs/tháng
Thông tin chi tiết
Mô hình không.: BPHT241 Tùy chỉnh: Tùy chỉnh
Xếp hạng bảo vệ: IP65 Cân nặng: ~0,3kg
Vật liệu nhà ở: 316L hoặc 304SS Loại áp lực: Áp suất đo, áp suất tuyệt đối, áp suất kín
Gói vận chuyển: Bao bì xuất khẩu tiêu chuẩn với hộp Đặc điểm kỹ thuật: Cảm biến áp suất silicon
Nguồn gốc: Baoji, Trung Quốc Mã HS: 9026201090
Loại cấu trúc: Máy phát áp suất silicon khuếch tán Đo môi trường: Không khí và chất lỏng
Độ chính xác: 0,5% Phạm vi áp suất: -100kpa ... 0kpa ~ 35kpa ... 20MPa
Chủ đề: g1

Mô tả sản phẩm

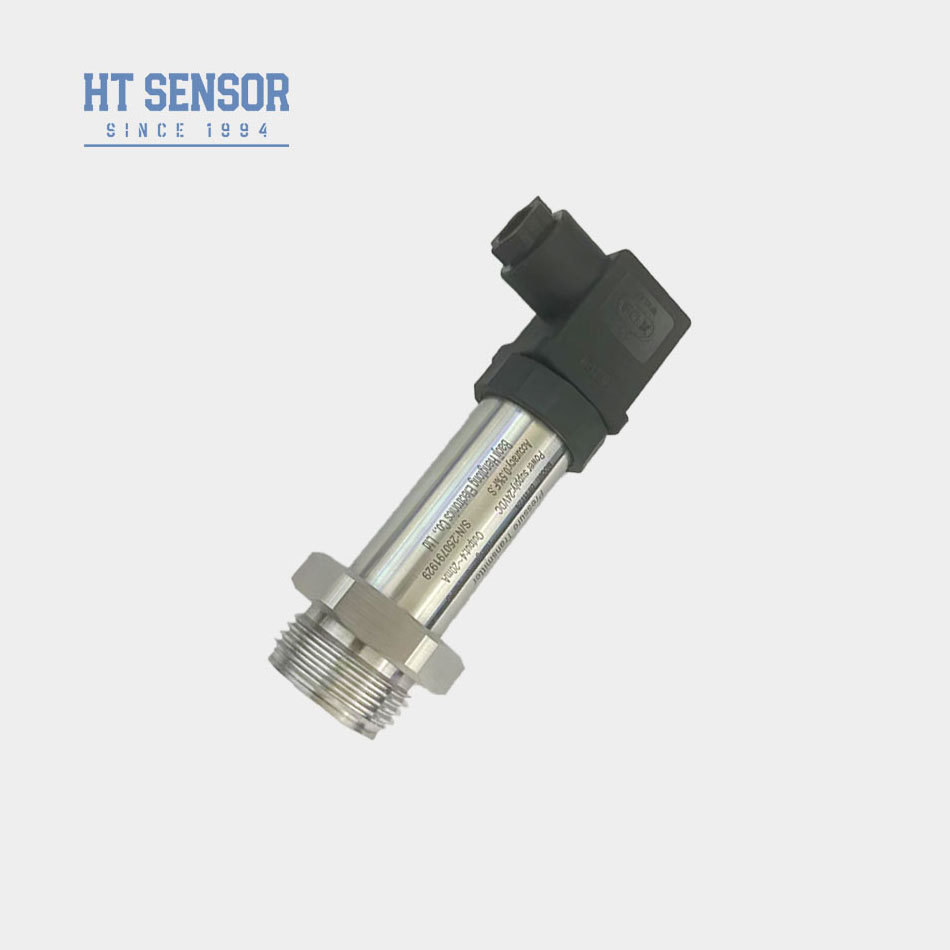

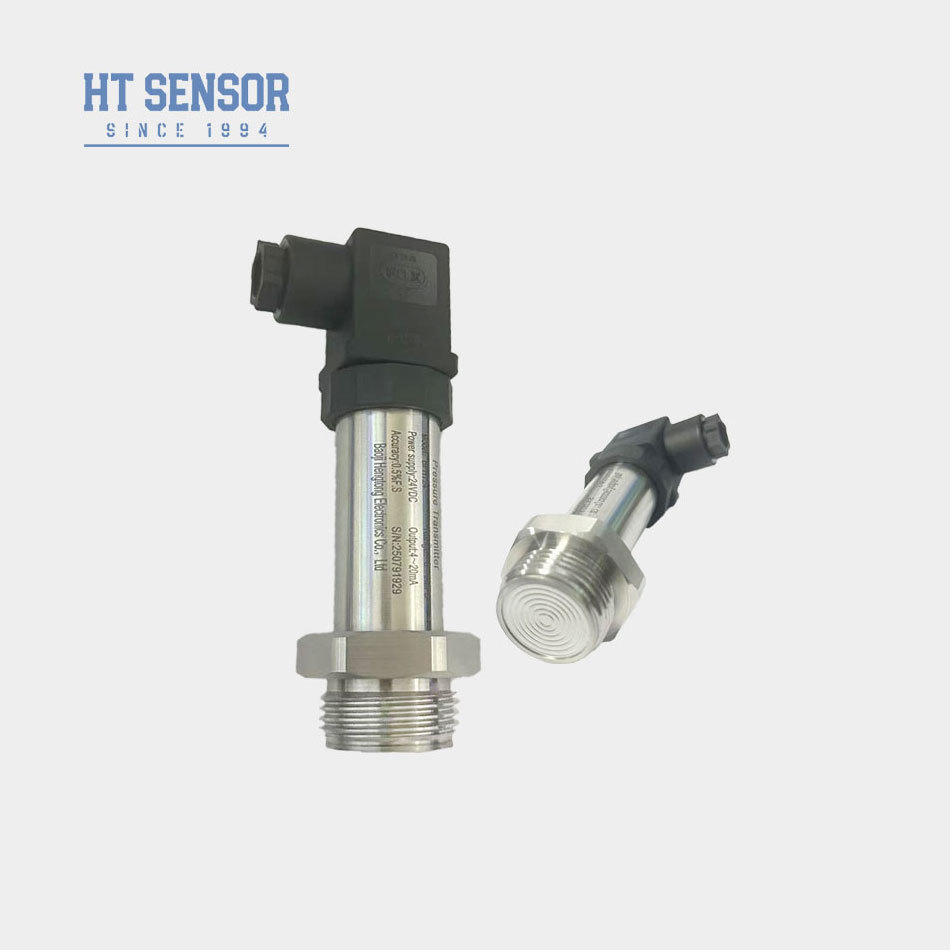

                                 BPHT241 Flush Diaphragm Pressure Transmitter

Introduction:



BPHT241 flush diaphragm pressure transmitter utilizes the HT series big flush diaphragm silicon pressure-resistance isolation oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. This pressure transmitter is primarily used in places where high sanitary conditions are required, ensuring reliable and accurate pressure measurements in hygienic environments.



Product  Features:

1. G1 pressure interface

2. Designed for hygienic applications to prevent medium scaling

3. High accuracy with a fully stainless steel structure

4. Easy to clean.



Applications:

1. Suitable for measuring non-corrosive gases and liquids with 316L

2. Ideal for environmental protection and chemical industries

3. Used in the marine and aviation industries

4. Well-suited for use in the medical, biopharmaceutical, and food hygiene industries.



Performance Parameters
Measurement Range 0~35Kpa…~20MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability 0.1%FS
Hysteresis 0.1%FS
Long-Term Stability ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Zero Point Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response 2.4Khz
Compensation Temperature -20-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304,316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Ex db IIC T6 Gb
Protection Rating IP65
O-Ring Seal Fluoro rubber
Weight ~0.25kg

Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA
3 wire
0/1~5V
0/1~10V
0.5~4.5V 5VDC
RS485 Communication Protocol 3.6~30V / Battery 4 wire



G1  Flush Diaphragm Pressure Transducer Silicon Diaphragm Pressure Sensor 0


G1  Flush Diaphragm Pressure Transducer Silicon Diaphragm Pressure Sensor 1
Selection Examples



G1  Flush Diaphragm Pressure Transducer Silicon Diaphragm Pressure Sensor 2

Ordering tips

1. When selecting the product, please ensure that the medium to be measured is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are  reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.



G1  Flush Diaphragm Pressure Transducer Silicon Diaphragm Pressure Sensor 3
