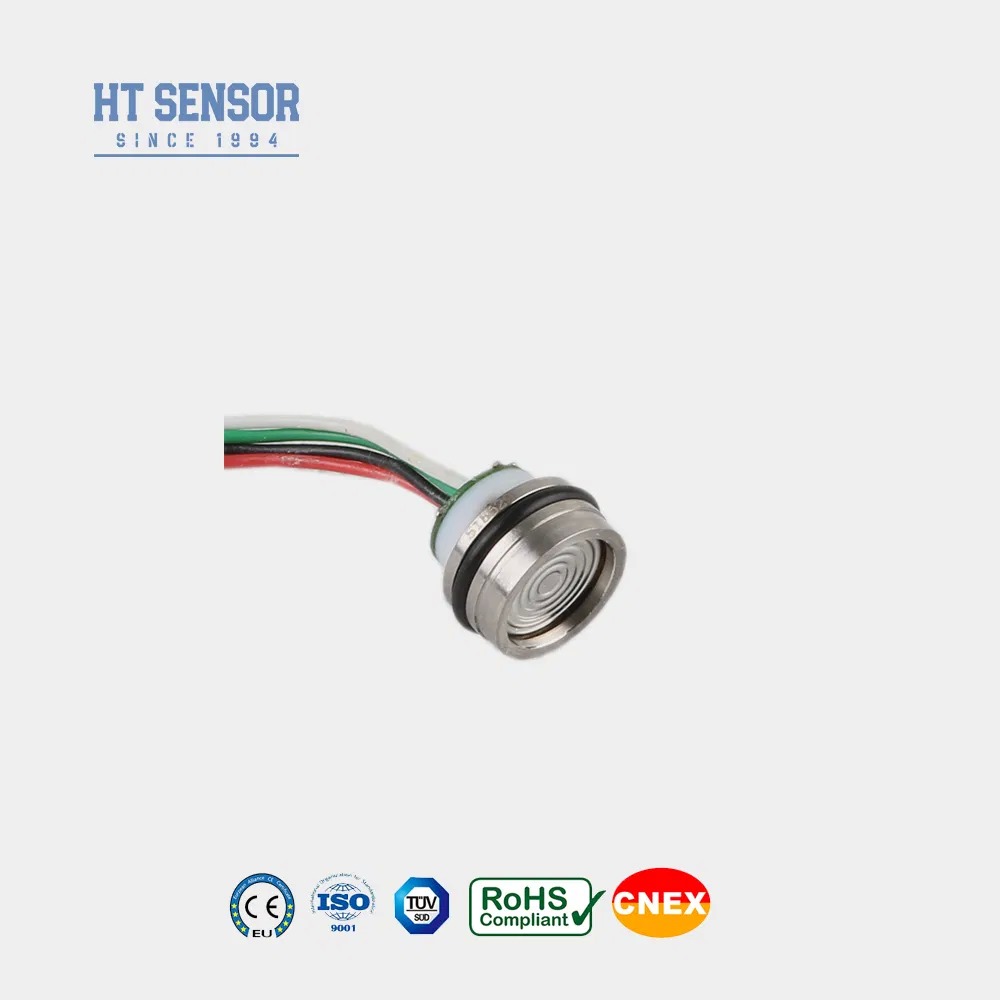

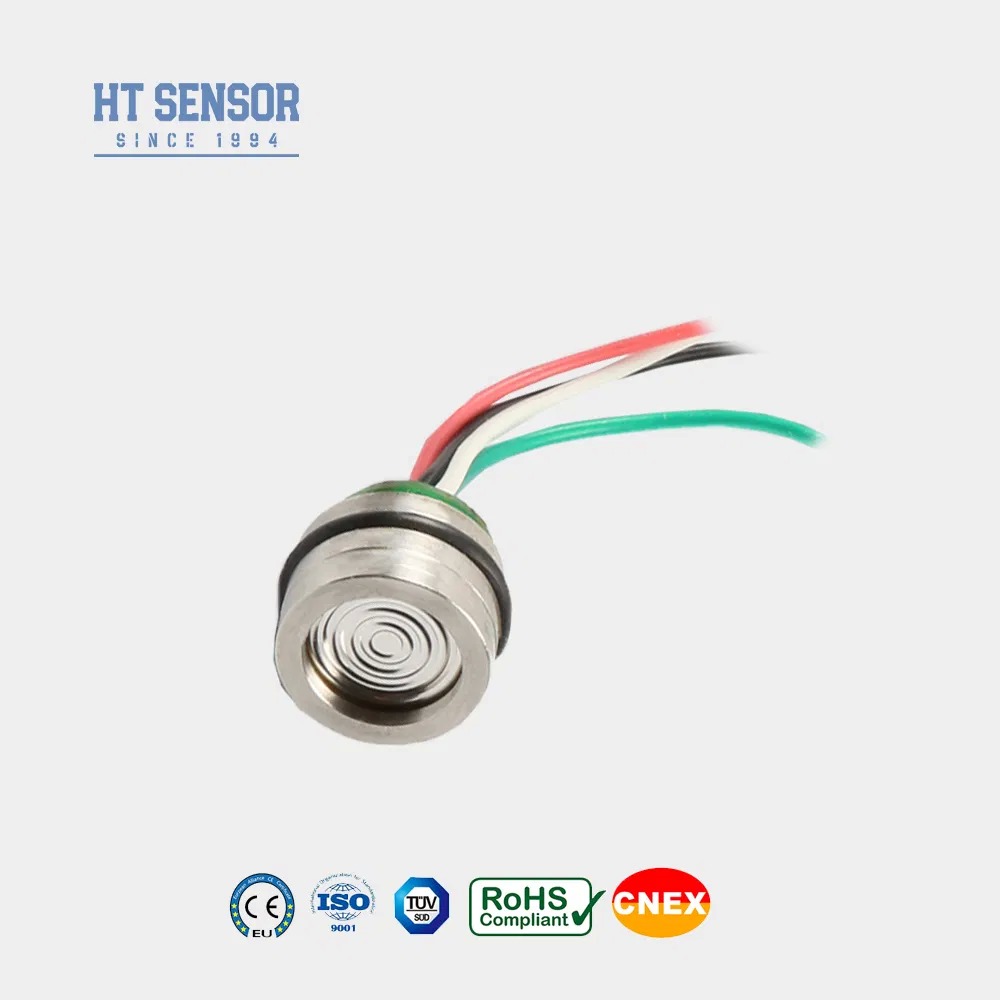

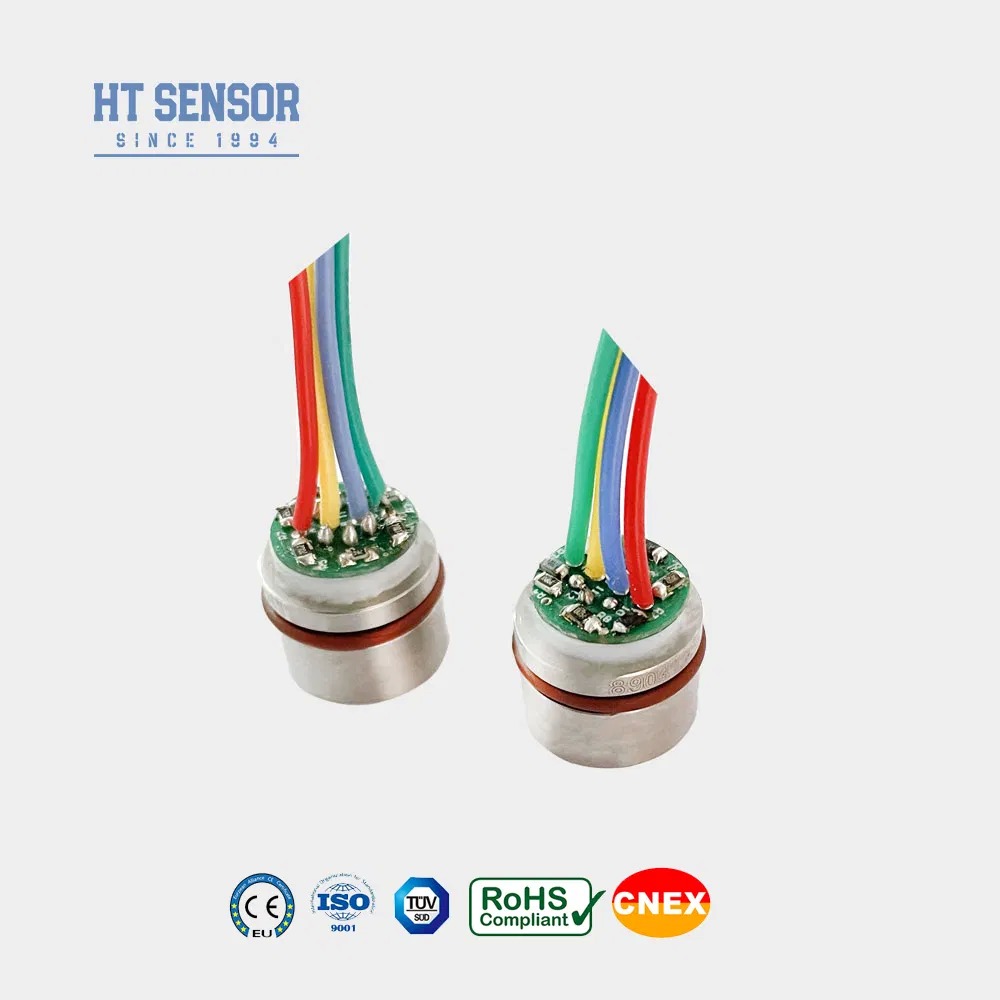

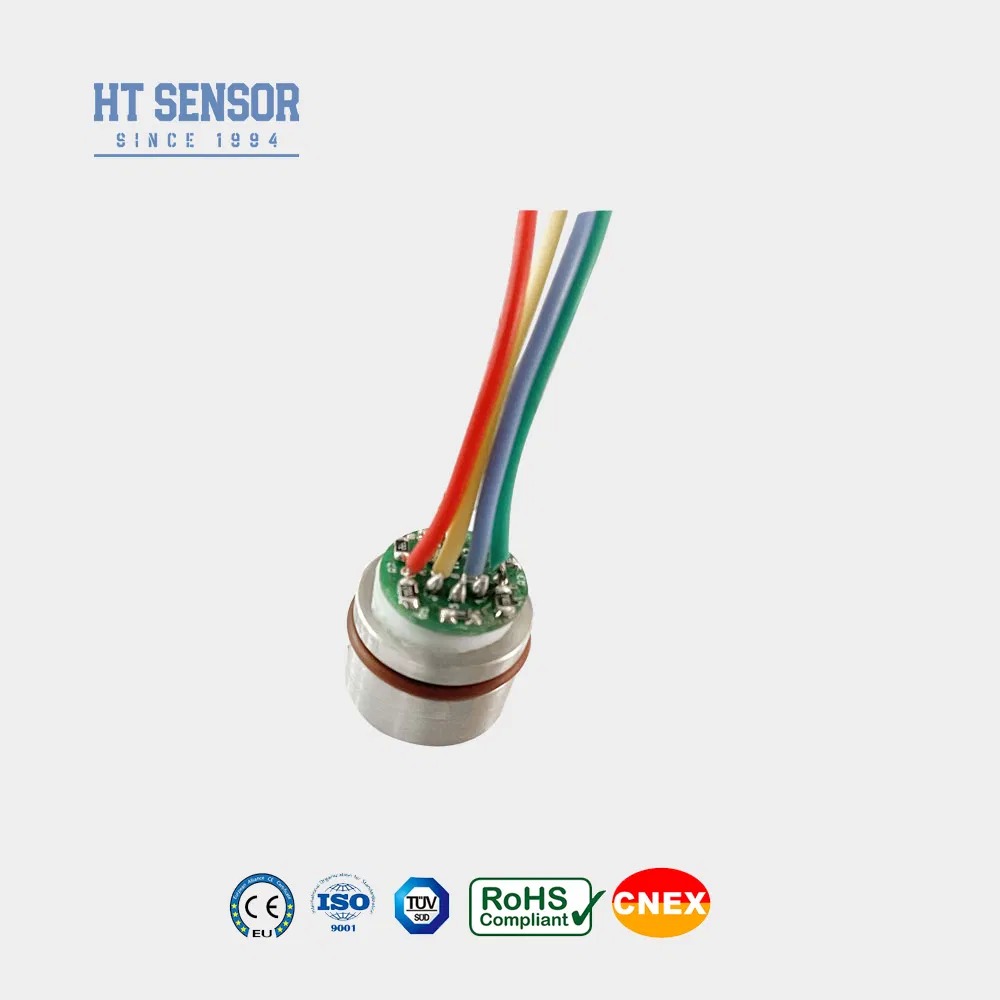

15mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor

15mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor
15mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor 15mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor 15mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor 15mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor 15mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor
Thông tin cơ bản
Chứng nhận: RoHS
Số lượng đặt hàng tối thiểu: 5
Giá bán: 20
Giá tốt nhất Liên hệ với bây giờ
Thông tin chi tiết
Mẫu số: HT15V Vì: Máy phát áp suất silicon khuếch tán
Loại tín hiệu đầu ra: Loại tương tự quá trình sản xuất: Tích hợp
Vật liệu: thép không gỉ Loại chủ đề: KHÔNG
loại dây: bốn dây Phương tiện đo: Khí và chất lỏng
xếp hạng ip: IP65 tùy chỉnh: tùy chỉnh
Từ khóa: Cảm biến nhỏ Cung cấp: 5-10VDC
Dây điện: dây silicon 13mm đầu ra: tín hiệu MV
Gói vận chuyển: thùng carton Đặc điểm kỹ thuật: 15mm
Nhãn hiệu: HENGTONG Nguồn gốc: Trung Quốc
Mã HS: 9026209090 Năng lực sản xuất: 50000 chiếc / năm
Làm nổi bật:

15mm mini pressure sensor

,

diffused silicon pressure sensor

,

compact electronic pressure sensor

Mô tả sản phẩm

15mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor 0
10VDC  Powered 10mv/V  500psi Compact Diffused Silicon Pressure Sensor Electronic Sensor
HT15V Silicon Piezoresistive Pressure Sensor

Introduction:
HT15V is a silicon piezoresistive pressure sensor featuring a highly stable diffused silicon element core. It employs the piezoresistive effect of diffused silicon for precise measurement of both liquid and gas pressures. This sensor finds extensive usage in various applications, including air compressors and refrigeration systems .
15mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor 1
15mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor 2
15mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor 3


Product  Features:
  1. Utilizes advanced technology and is encapsulated in a 316L stainless steel housing
  2. Wide measuring range 0~350KPa~60MpaS
  3. High reliability and excellent stability
  4.  Constant voltage supply
Applications:
  1. Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
  2. Compact design, ideal for applications with limited space
  3. Used in process control systems for monitoring and controlling pressure
  4. Commonly used in refrigeration systems and air compressors for pressure measurement
Electrical performance:
  1. Power Supply: ≤10VDC
  2. Common Mode Voltage Output: 50% of the input (typical)
  3. Input Impedance:4KΩ~20KΩ
  4. Output Impedance:2.5KΩ~6KΩ
  5. Electrical Connection:100mm high-temperature wire,ribbon cable
Performance Parameters:
Measurement Range Gauge(G) 350KPa,1000KPa,2000Kpa
Absolute(A) 350KPaA,700KPaA,1000KPaA,2000KPaA
Sealed(S) 3500KPaS,7MPaS,10MPaS
  Typ Max Unit
NonLinearity   ±0.15 ±0.3 %F.S
Repeatability  0.05 0.1 %F.S
Hysteresis    0.05 0.1 %F.S
Zero Offset Output   0±1 0±2 mV
Full Scale Output   100±1 100±2 mV
Zero Offset Temp. Drift   ±0.8 ±2 %F.S
Full Scale Temp. Drift ±0.8 ±2 %F.S
Compensated Temp. 0~70 ºC
Operating Temperature   -20~80 ºC
Storage Temperature  -40~125 ºC
Allowable Overload Take the smaller value between 3 times the full scale or 80MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 %   F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
O-ring Seal Nitrile rubber or Fluoro rubber
Filling Medium Silicon Oil
Weight ~20g
The parameters are tested under the following conditions:  10V @25ºC

Outline Construction
Dimension 15mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor 4

Electrical connection and compensation

15mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor 5




Selection Examples
15mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor 6


Ordering tips
1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
required air tightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.

company

15mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor 715mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor 815mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor 915mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor 1015mm Mini Compact Diffused Silicon Pressure Sensor Electronic Sensor 11

Q&A

1.Q: What are the features of your pressure sensor transmitters?
   A: High precision, durability, and excellent performance. Customization available.

2.Q: Can I customize special specifications?
   A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service

3.Q: What is your production capacity?
    A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
.
4.Q: What's the typical delivery period?
    A: 5~8 working day for standard models. Customized products may vary.

5.Q: How are the products priced? Any discounts?
    A: Competitive pricing with discounts for bulk orders or long-term partners
.
6.Q: What is the warranty of your products? And after-sales service?
    A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote  instruction by PC network is always available.
